This giant sized metal plate 212 tube is definitely the ‘king’ of vacuum tubes – This listing is for “factory’s most recent version with enhanced plate capacity”. Do not confuse it with previous version.
Developed from the original Western Electric 212E, it has added modern engineering enhancement for a superb triode sonic ecstasy.

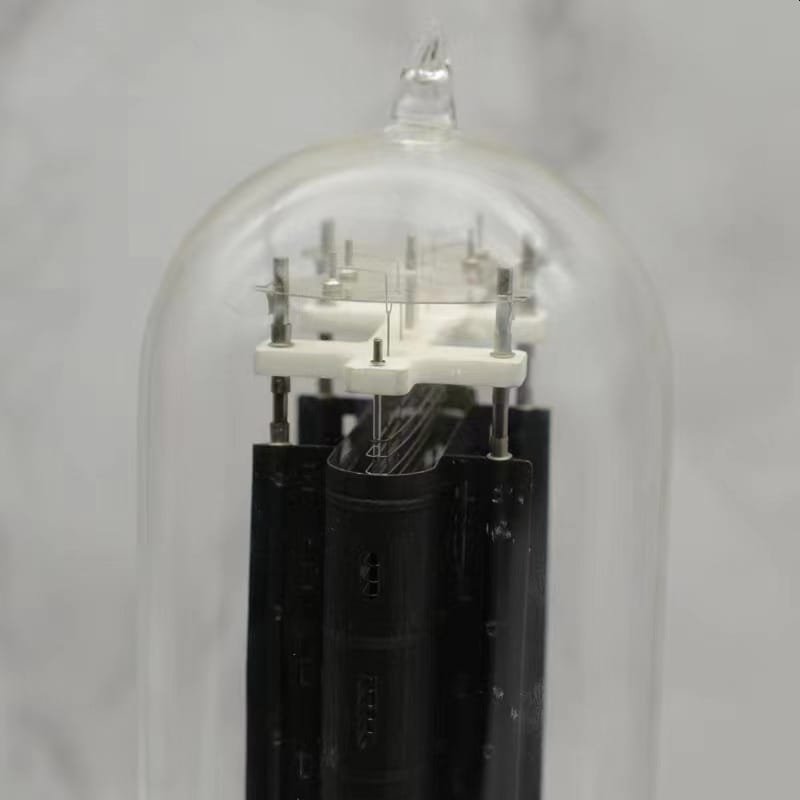

- Filament design has been improved from top spring fastened to an overhung hooked design. It not only greatly improves sound quality, but also improved reliability for shipping and handling for this EXTRA LARGE tube.
- Venting holes are added to the specialty metal plate to not only efficiently dissipate heat, but also reduce swirling electrons inside the tube – which will improve sonic resolution and details, and avoid ‘muddy sound’ as in previously released versions.
- The 4-post reinforcement structure for the filament and plates help with reliability and improve upon previous ‘mica plate style’ for a more lively sonic signature.
- Additional Linlai™ proprietary plate coating allows this latest version of metal plate E-212 to sustain plate heat dissipation up to a HUGE 200 watts, without any sign of red plating over a continuous 120-hr burn-in test at factory lab.
Factory suggested optimal circuit operation condition:
For single ended design, factory suggests that optimal settings are:
Plate voltage 1050V – 1100V
Plate current 100mA
Plate dissipation 120W
Load resistance at 3.5kOhm
Package size:
Each tube is packed in an individual carton box – dimension 19″ L x 8.5″ W x 8.5″ H (48 x 21 x 21cm)
Multiple tubes under one order will be double boxed to ship in a larger carton.
Please note that this tube is highly fragile for shipping. Shipping damage will be covered by the seller but buyer MUST be prepared to work with the seller through the replacement process. Shipping damage CANNOT be used as reasons for order cancellation and refund. If you are NOT willing nor have patience to work through replacement process, please do NOT place order for this fragile tube.
